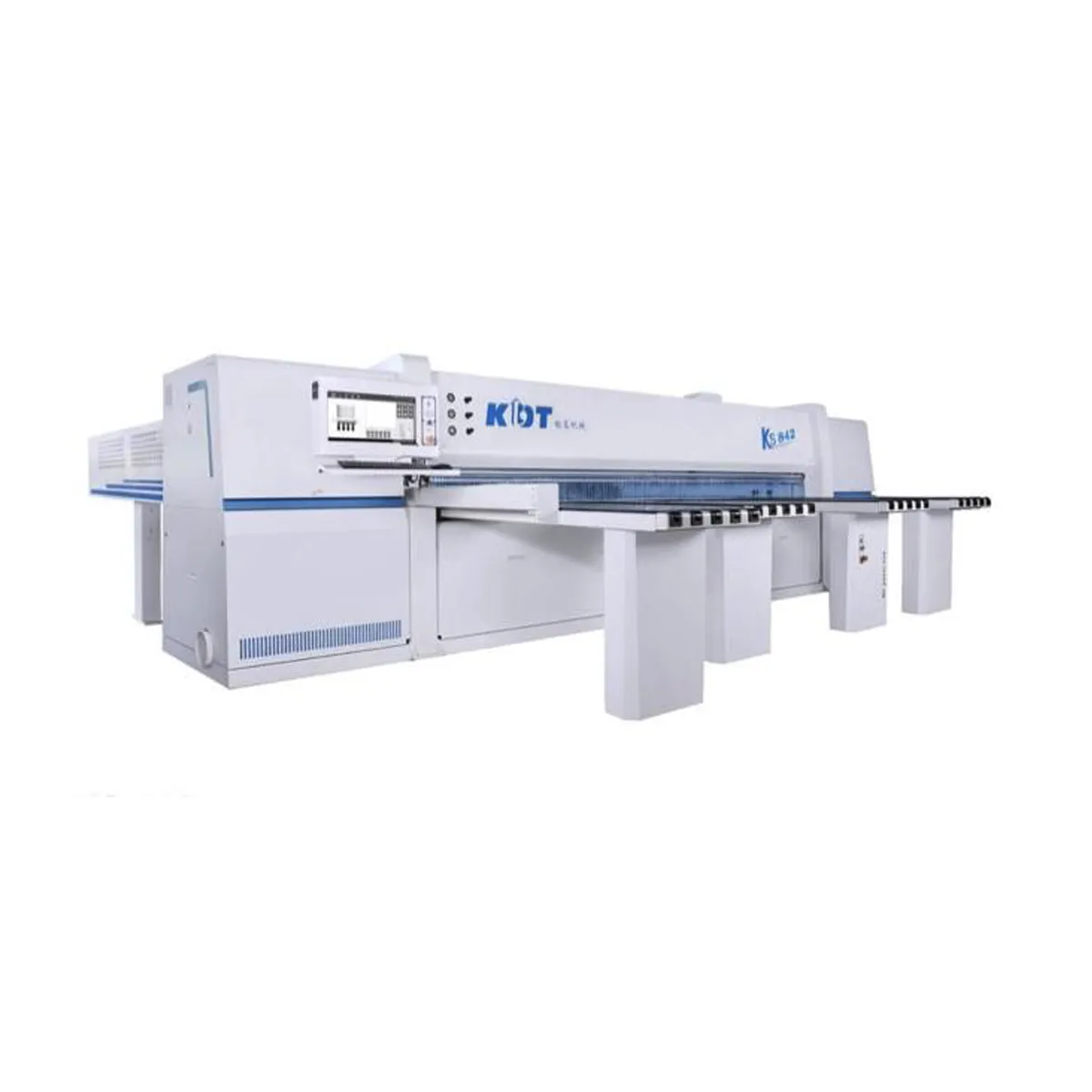

KDT KS-828C/832D/843D/832H Front Loading Beam Saw
Experience heavy-duty performance with our front-loading beam saw. Featuring a robust rack and pinion drive system, and manual front loading with air table assist for smooth operation. KS828C
- 2800mm Single Pusher
KS832D
- 3200mm Single Pusher
KS832H
- 3200mm Twin Pusher
KS843D
- 4280mm Single Pusher
Font Load D Series Brochure
Features
- Max. height of the pack 120mm
- Saw carriage drive by servomotor.
- Accuracy-Speed-Durability,
Working speed of the saw carriage 1-95 m / min. - The return speed 1-120 m / min.
- Programmable pusher speed 95m / min.
- Pneumatic double-finger grippers.
- Air cushion worktables and bed
- Automatic blade height to match stack height > improves cut quality
- Grooving function with programmable spacing and depth of Grooves
- Auto Beam Height setting –
Pre-positioning of side – aligner,
Saw carriage travel matched to cut length –>improve cut cycle times - All models Include ‘PRECUT’ Optimising software
Technical Data
See the KS832H in Action
A beam saw with clever machine bed design
CAD designed with the maximum permissible loads and requirements for the machine design calculated and modelled.
The welded frame is tempered to remove all internal stresses in the material, then machined on a five-axial metal-working CNC – including all the mounting holes and plates

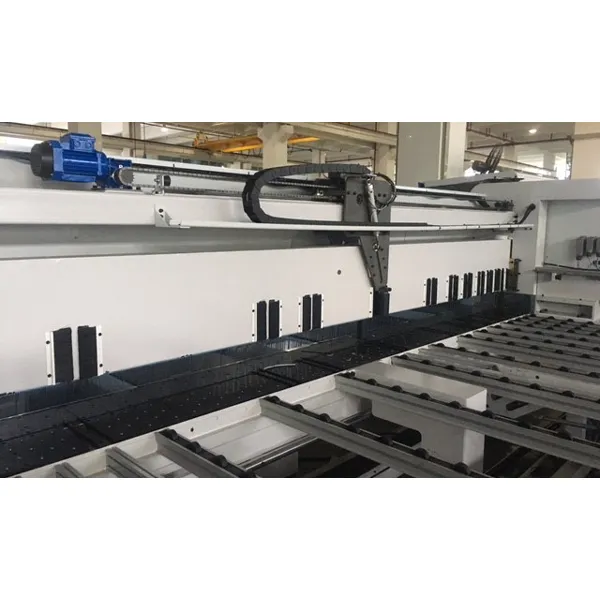

Heavyweight performance beam saw
Heavy steel construction of top pressure beam with integrated dust extraction
Precision machining of mounting pads and large diameter guide rails ensure perfectly straight and smooth saw carriage travel.
Massive heavy-duty steel frame guarantees accuracy and precision.

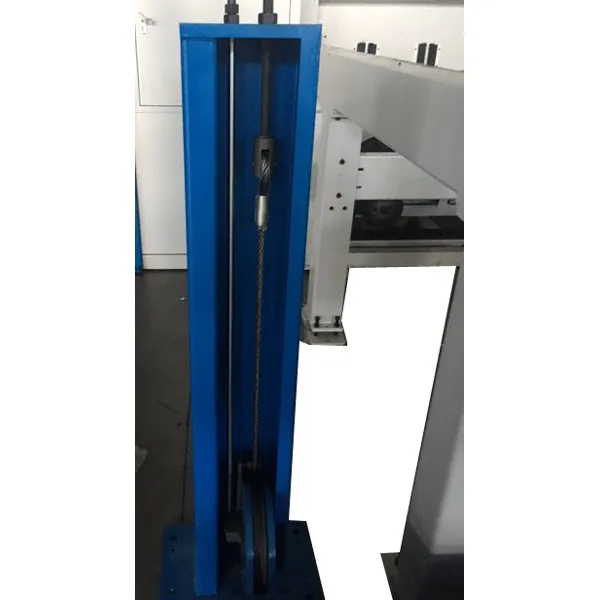

Hydraulic rear lift
Powerful steel cable driven rear lift table with optimised panel positioning.
Panels as thin as 8mm can be selected from the rear load table

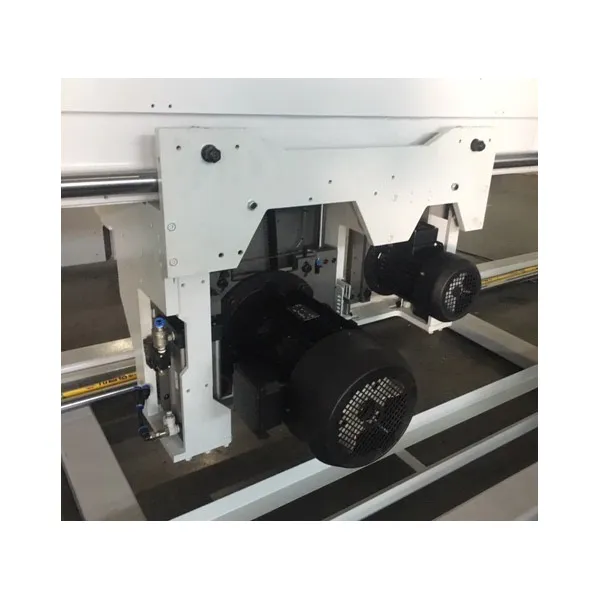

Powerful cutting
Separate powerful main 18.5kW and 1.5kW scoring saw with quick blade change.

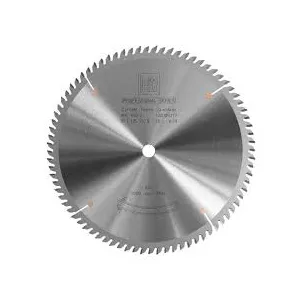

Improved cut quality
Optimised saw travel

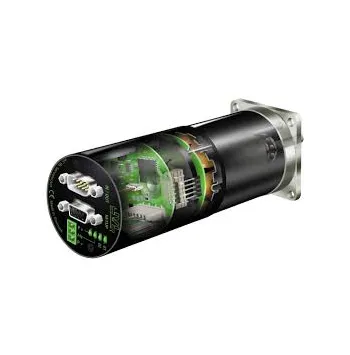

Movement of the saw carriage by 2kw servomotor. (Optimised travel cycle and fast and powerful)

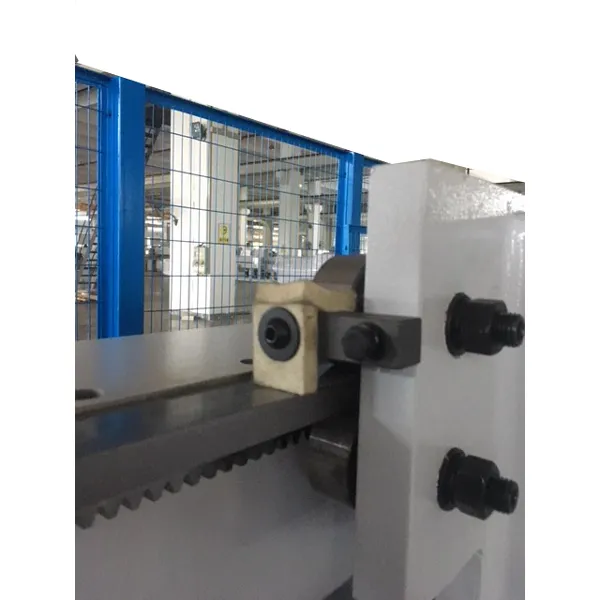

Heat treated precision rack and large diameter pinion drive gear

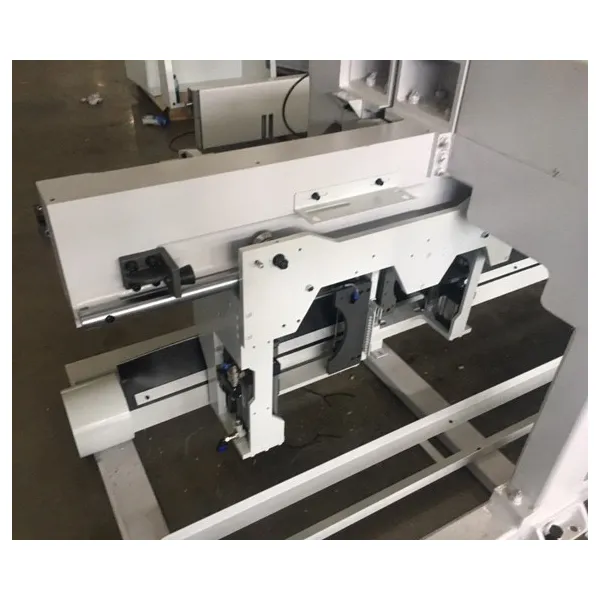

Fast accurate side aligner
Twin pusher option
Grooving

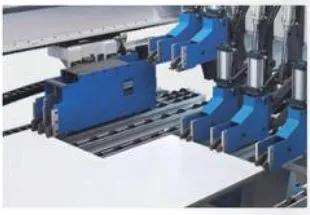

Powerful double finger Grippers
Vertical clamping grippers to guarantee panels will not move. powerful air cylinders to provide maximum grip
Soft tips will not damage panels but ensure maximum grip on the panel surface.
Heavy duty cast aluminum gripper construction for trouble free service.
PC with ‘PRECUT’ Optimising Software

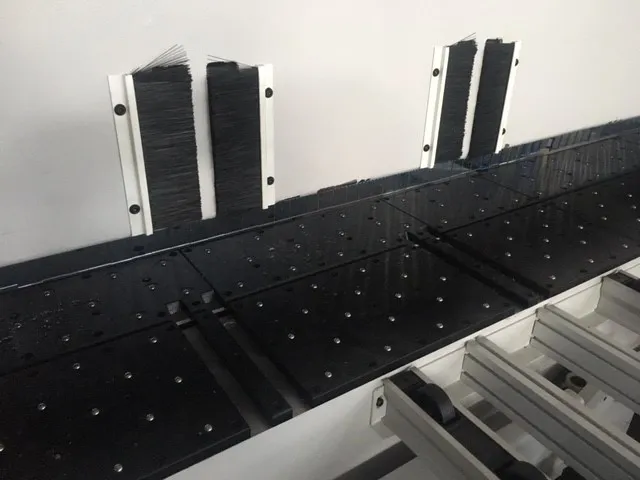

Air cushioned Bed and Tables
