KE-710BT
KDT KE-710BT the versatile Edge Bander
Versatile Edgebander with super fast setups in a compact and VERY AFFORDABLE package.
KDT KE-710BT - Feature Benefit Report
Features
- Compact – only 6138mm length. Full safety covers

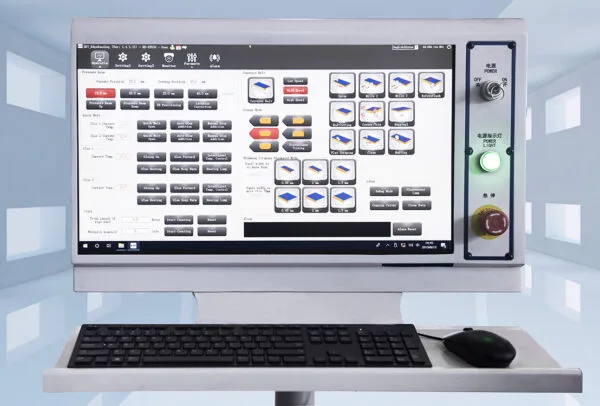

- Convenient large touch screen, modern crisp graphics PC based – able to store 12 programs
- Servo set: infeed fence, trimmers, scrapers & pressure rollers from touchscreen or program
- Lights and sound damping inside safety hoods. Large windows for better visibility.
- High feed rates: 15-24 metres/min.
- Electric / pneumatic auto lubrication of feed track. Easy!
- Feed jogging to assist setting up with mobile control pad
- Pneumatic shut-off gate on glue roller.
- Front and rear tape overhang adjustment from touch screen
- Electronic ‘line control’ monitoring of workpiece position (eliminate microswitches)
- Large 100mm dust connections for efficient extraction.
- 4 pressure rollers – Individual pneumatic pressure to each roller – servo auto positioning
- Pneumatic gate ‘pin’ controls panel gap
- Touch screen motorized height setting on top beam with height pre-sets and piece counting
- High precision slide ways on cut-off saws with auto lube. 15 deg. pneumatic tilt of saws
- Efficient Direct drive and inverter-controlled motors on saws and trimmers.

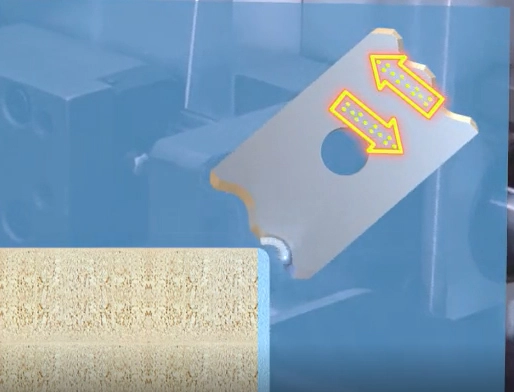

- Pneumatic blowers on scraper tracer wheels keep swarf from affecting accuracy.
- Digital pneumatic positioning of trimmer stations from touchscreen
- Buffers on Solid round bars – no flex under load.
- 1440rpm buffs prevent scorching.
- Heavy weight delivers precision
- Extra solid panel support rail
Technical Data
See the KE-710BT in Action
Servo Simplicity
Reset your fences, work stations and panel thickness.
Fast and Effective
PC touchscreen setting and saved program recall.
