DSD500x4300

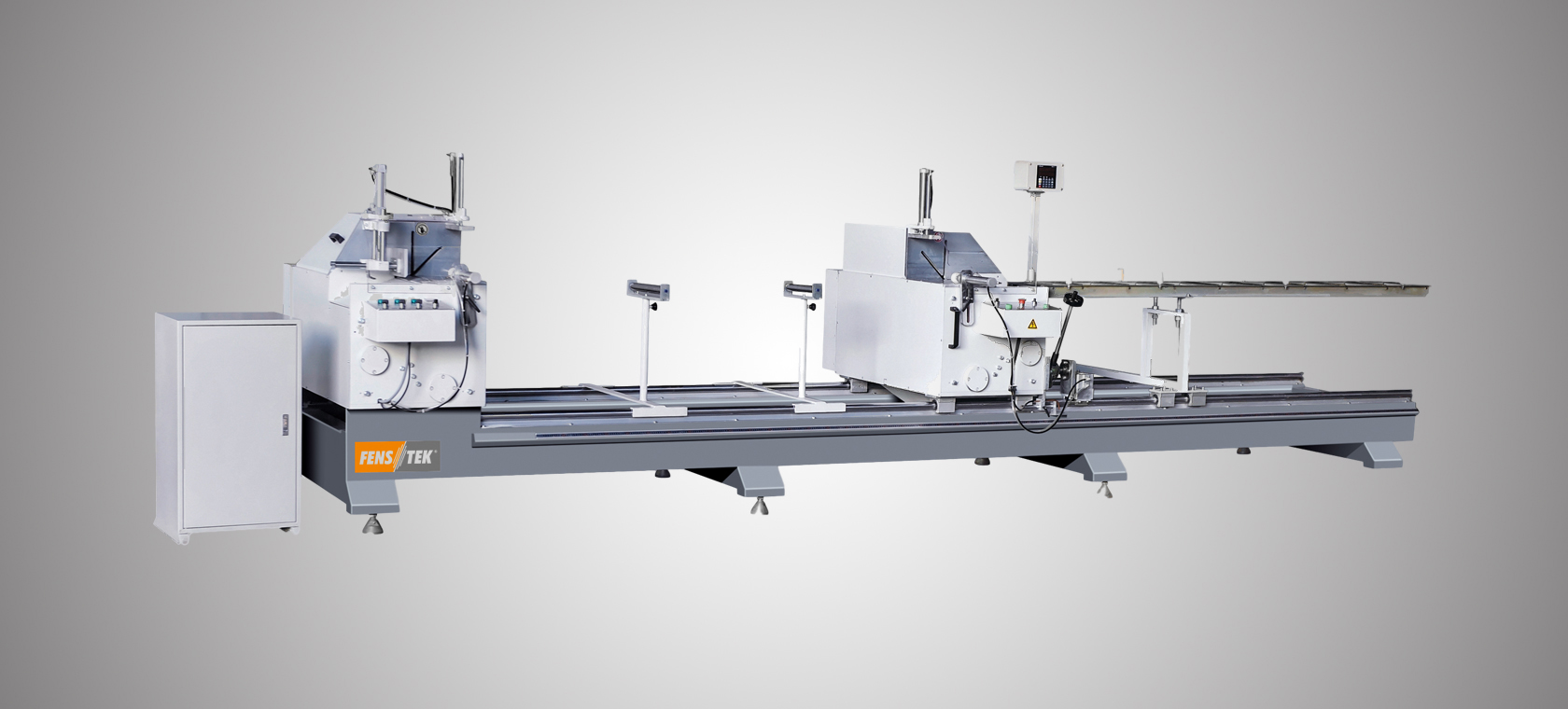

UPVC Window Double Head cutting saw

Features:

1. Double Head Saw Machine cut the main material for aluminium alloy curtain wall, window material cutting and can also be used for plastic profile cutting.

2. The use of carbide saw blades, diameter up to 500 dia, line of high speed high precision machining.

3. Right heads feeding adopts pitch ball screw-lead motion, with high accurate driving, locating and smooth working.

4. This machine uses the numerical control technology, profiles of different specifications can completed automatically under the expected size.

5. Machine during operation, two saw blade can separate cutting.

6. The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large.

Main Accessory


Saw blade

Japan WAGEN

Solenoid valve

Airtac

Cylinder

Airtac

Motor

Anhui Sanyang (Best Chinese Motor Brand)

Air Filter Device:

Airtac

Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Approach Switcher

Swiss   CONTRINEX or Japan Omron

Parameter


Air Pressure:

0.6-0.8MPa

Air Consumption

60(L/min)

Input Voltage:

3N-50Hz 380/220V or As Customer Specification

Input Power:

5.9(kw)

Saw Blade Diameter:

D 500x30)120x4.3TP

Spindle Rotary Speed:

2800(r/min)

Cutting Height:

90°:120mm   45°:100(mm)

Cutting Width

300(mm)

Cutting Length:

400mm-4500mm 90°&45:430-4500(mm)

Overall Dimension:

5750*1300*1500(mm)

Weight:

2500(kg)
