KDT KS-833L/843L/843HL/542HL Rear Loading Beam Saw

KS-542HL, KS-833L, KS-843HL, KS-843L

KDT KS-833L/843L/843HL/542HL Rear Loading Beam Saw

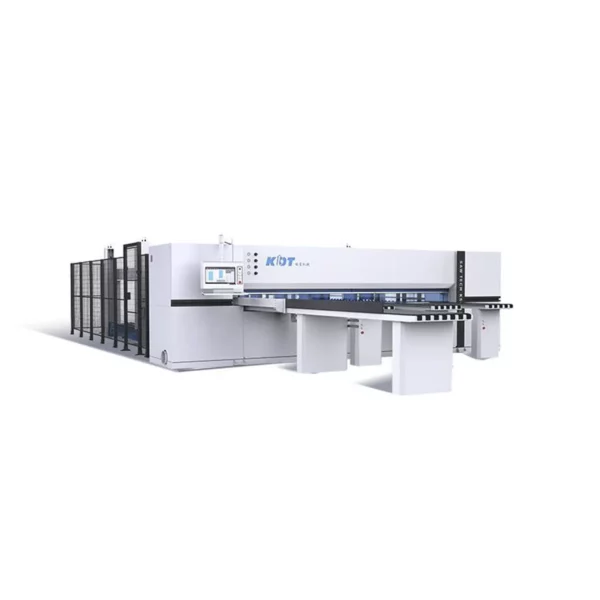

Optimise efficiency with our rear-loading beam saw. Built with a heavy-duty rack and pinion drive system and equipped with air table assist. Offers the flexibility of rear or side loading for added convenience.

KS-833L

3300mm

KS-843L

4300mm

KS-843HL

4300mm Twin Pusher and Pusher Beams

KS-542HL

Twin Pusher

Features

Max. height of the pack 120mm
Saw carriage drive by servomotor.
Accuracy-Speed-Durability,
Working speed of the saw carriage 1-95 m / min.
The return speed 1-120 m / min.
Programmable pusher speed 95m / min.
Pneumatic double-finger grippers.
Air cushion worktables and bed
Automatic blade height to match stack height > improves cut quality
Auto Beam Height setting –
Pre-positioning of side – aligner,
Saw carriage travel matched to cut length –>improve cut cycle times
All models Include ‘PRECUT’ Optimising software

Technical Data

A beam saw with clever machine bed design

CAD designed with the maximum permissible loads and requirements for the machine design calculated and modelled.

The welded frame is tempered to remove all internal stresses in the material, then machined on a five-axial metal-working CNC – including all the mounting holes and plates

Heavyweight performance beam saw

Heavy steel construction of top pressure beam with integrated dust extraction
Precision machining of mounting pads and large diameter guide rails ensure perfectly straight and smooth saw carriage travel.

Massive heavy-duty steel frame guarantees accuracy and precision.

Hydraulic rear lift

Powerful steel cable driven rear lift table with optimised panel positioning.

Panels as thin as 8mm can be selected from the rear load table

Powerful cutting

Separate powerful main 18.5 kw and 1,.5kw scoring saw with quick blade change.

Improved cut quality

Automatic cut height projection – to improve cut quality. Quick blade change system Safety fence 1.8 metres high with interlocking access door. Top quality CE compliant Electrics and Electronics.

Optimised saw travel

Movement of the saw carriage by 2kw servomotor. (Optimised travel cycle and fast and powerful)

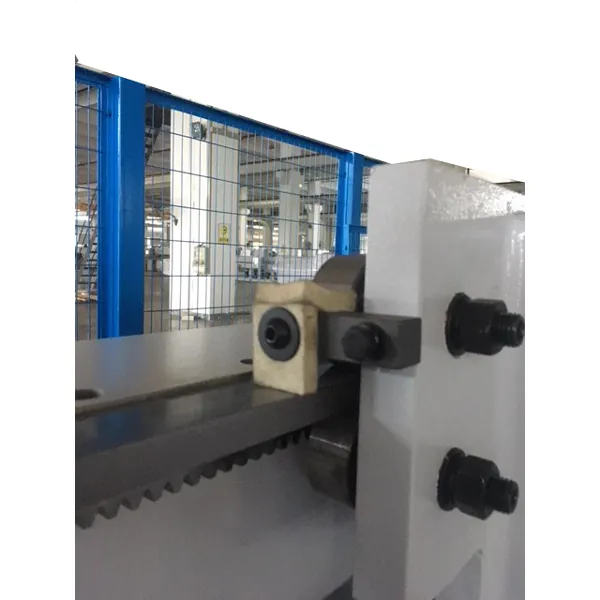

Heat treated precision rack and large diameter pinion drive gear

Fast accurate side aligner

Optimised cycle time prepositioning. Capacity to 2400mm. Dual side alignment by rack and pinion and lineal guides for maximum strength and accuracy, pressing against crosscut fence on both sides of pressure beam to suit all panel sizes. Heavy laser cut steel construction with soft rubber guide rollers to eliminate any panel edge damage.

Twin pusher option

Improve flexibility and throughput with twin Independent pusher system. Choose single or twin pusher function via the software. Simple, flexible , highly efficient

Grooving

Servo depth set grooving function is included with some models – please check with LEDA.

Powerful double finger Grippers

Vertical clamping grippers to guarantee panels will not move. powerful air cylinders to provide maximum grip
Soft tips will not damage panels but ensure maximum grip on the panel surface.

Heavy duty cast aluminum gripper construction for trouble free service.

PC with ‘PRECUT’ Optimising Software

Windows based Industrial PC controller. Graphic display showing each stage of the cutting process. PreCut Optimisation software includes: Label printing with easy and flexible formatting and output for Printer (Printer not included) Ability to Import Cut lists from Excel. Choice of Optimisation levels and Parameter / head-cut mix.

Air cushioned Bed and Tables

An air cushion in the work area eliminates scratching of sensitive Panels. Complements the 4 air cushion worktables. Worktables re-positioned easily to suit panel sizes.
