KDT KE-395J Bevel Edge Bander
Optimize your finger pull edgebanding with our specialized solution. Featuring pre-milling at 45 degrees and square edge, two glue pots, and the ability to press both 45 and square edges simultaneously. Additionally, it grooves the back surface of the edge strip for seamless integration without joins.
KE-395J Feature Benefit Report
Features
- Spray units before milling and buffing
- Pre-milling of bevel edge at 45º.
- Pre-milling of square edge.
- Grooving back surface of edge strip
- Hot melt glue application of square edge.
- Hot melt glue application of 45-degree bevel edge.
- Edge strip application with pneumatic guillotine.
- Hot air blower on edge strip to assist bending.
- Pressing rollers for square edge and bevel edge.
- End trimming saws for flush trim.
- First top and bottom trimming
- Second top and bottom trimming
- Radius scraping
- Flat top and bottom surface scrapers.
- Top and bottom buffing unit.
- Digital counters for exact adjustments.
Technical Data
| Feed speed (m/min) | 14 |
| Minimum panel size (mm) | 150×135 |
| Edge thickness (mm) | 0.45-1.5 |
| Workpiece thickness (mm) | 9-25 |
| Workpiece width (mm) | ≥ 135 |
| Workpiece length (mm) | ≥ 150 |
| Total power (kW) | 21,65 |
| Working pressure (MPa) | 0.6 |
| Dimensions LxWxH (mm) | 5750(L)x830(W)x1670(H) |
| Weight (kg) | 2400 |
See the KE-395J in Action

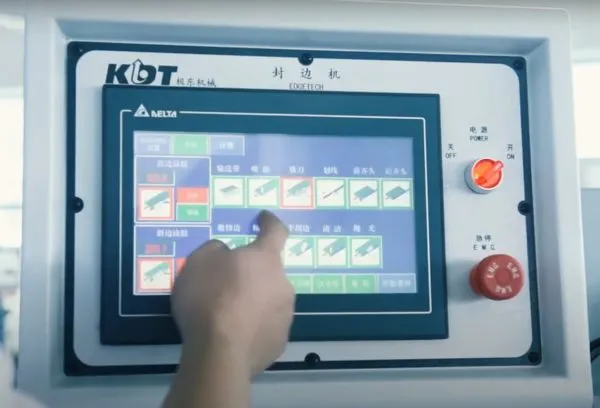

You're in Control
KDT’s 250mm touch screen sets new standards.
You’re in total control – selecting functions, height of the feed beam, machine ‘standby’ etc.
Comprehensive diagnostics and fault-finding with reset methods and ‘fix it’ steps – often no Technician required.

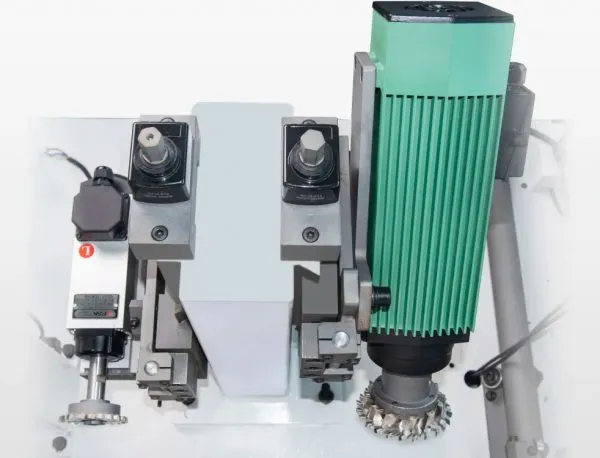

Unique twin shaping heads
The heavy-duty twin vertical and bevel trimmers cleanly hog the panel edge 45 degree bevel angle or bevel/ vertical combination profile.

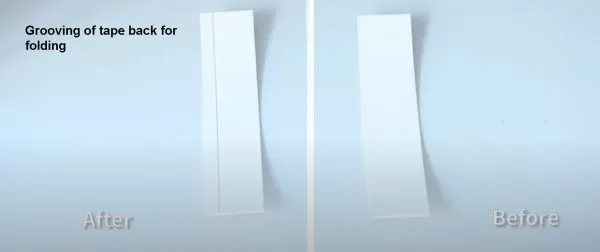

Clever bevel cut into Tape ensures clean fold
Machines out the rebate in the rear of your tapes that is the key to a perfect ‘fold’ at the point of vertical to bevel. The cutter profile has been carefully designed to deliver a unique flat/curve groove shape.

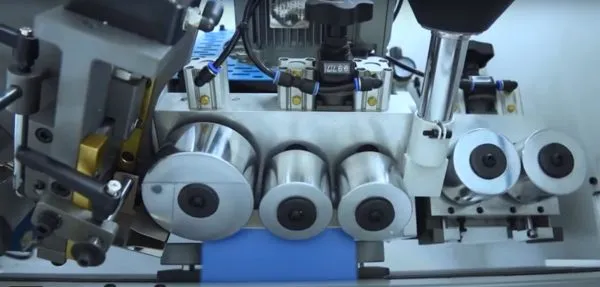

Twin pressure roller sets
The tape is pressed onto your panels on the straight and bevel by twin pressure roller groups with their own pneumatic cylinders.
End saw precision guaranteed

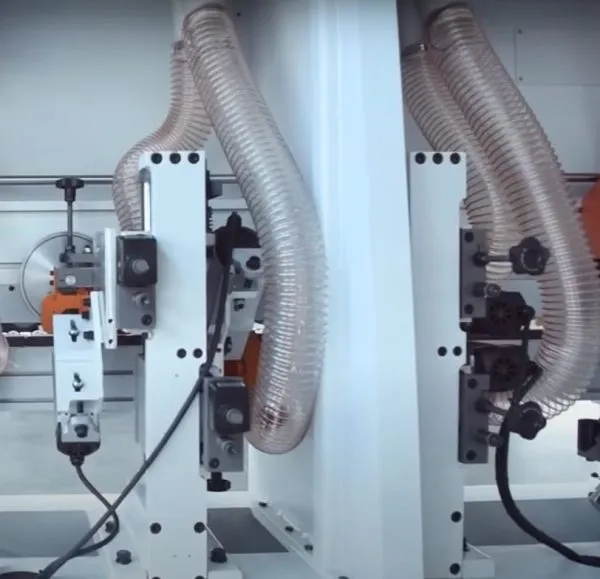

Trimmed top and bottom 'spot on'
KDT use heavy steel construction for the 2 sets of Trimmers to guarantee the ultra-fine precision required. Large rotating copy wheels with 12,000 rpm HF motors ensure perfect trimming
Digital precision resetting
Twin Scraping stations for perfect results:

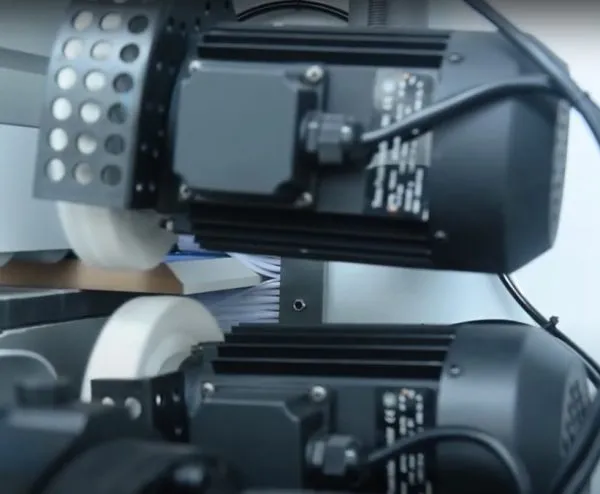

The final spray and polish

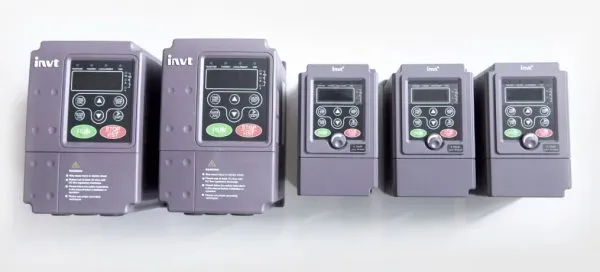

Individual Inverter control of Motors
