ZDJ-V25

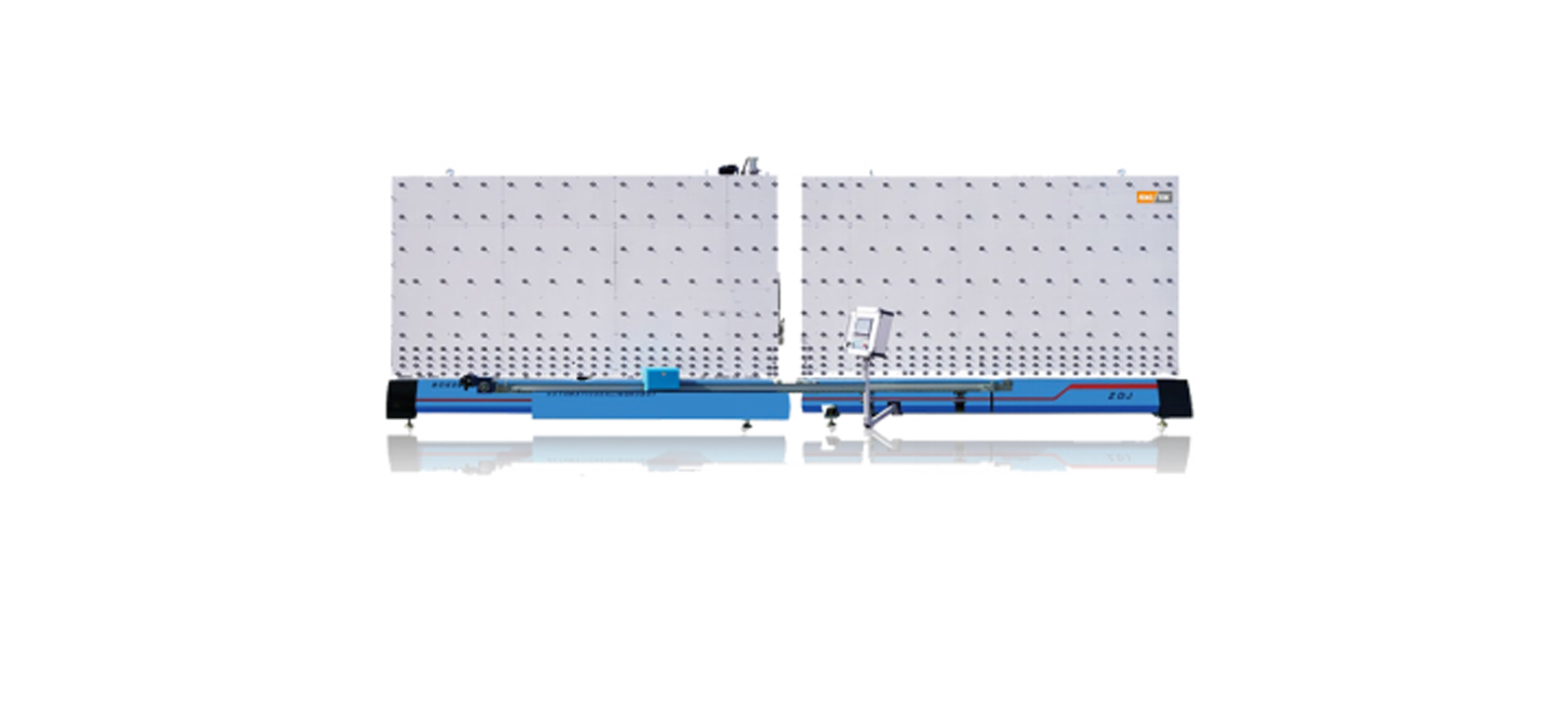

Automatic sealing robot
ZDJ-V25 Automatic Insulated Glass Sealing Robot is an advanced solution for high-precision IG unit sealing in window and door production lines. Designed for flexibility and consistent performance, this machine automatically adapts to various glass sizes and sealing depths, ensuring a flawless finish every time. Featuring servo-controlled movement and a unique V-block conveying system, it provides reliable sealing with minimal glue waste and excellent corner coverage. Built with premium components from Delta, Airtac, and Delixi, the ZDJ-V25 guarantees long-lasting performance, reduced downtime, and optimal sealing quality — making it ideal for large-scale insulated glass production.
Special gluing mechanism ensures close contact with IG units without damage, accommodating minor positional errors.
Adjustable sealing width via digital input; automatic detection of sealing depth ensures consistent application.
Intelligent control of sealing speed based on depth and glue quantity, with extra glue applied to corners for reinforced sealing.
Key electrical components from leading global brands ensure stability, accuracy, and extended service life.
Hydraulic system delivers precise, quantitative glue output through dual-cylinder oil control and mechanical ratio adjustment.
Synchronous belt and V-block conveyor system provide smooth, precise transfer with minimal glue leakage and clean glass edges.
Digital servo control system offers unilateral sealing, automatic fault detection, alarm, and locking functions for enhanced safety.
| Specification | Details |
|---|---|
| Power Supply | 380V 50Hz or customer specification |
| Total Power | 11.3 kW |
| Sealing Speed | 3–35 m/min |
| Sealing Depth | <18mm |
| IG Thickness | 12–50 mm |
| Min. IG Unit Size | 350 × 200 mm |
| Max. IG Unit Size | 3600 × 2500 mm |
| Glue Supply Pressure | <30 MPa |
| Standard Height | 400 mm |
| Inclination Angle | 6° |
| Air Pressure | 0.6–0.8 MPa |
| Max. IG Unit Weight | 400 kg |
| Machine Weight | 6410 kg |
| Overall Dimensions | 10000 × 3500 × 2700 mm |
🔁 Motion & Drive Components
| Component | Brand |
|---|---|
| Servo Drive | Delta |
| Servo Motor | Delta |
💨 Pneumatic System
| Component | Brand |
|---|---|
| Solenoid Valve | Airtac |
| Cylinder | Airtac |
| Air Filter Device | Airtac |
⚡ Electrical & Control
| Component | Brand |
|---|---|
| Electrical Button & Switcher | Delixi |
| AC Contactor & Circuit Breaker | Delixi |
| Approach Switcher | Delixi |
